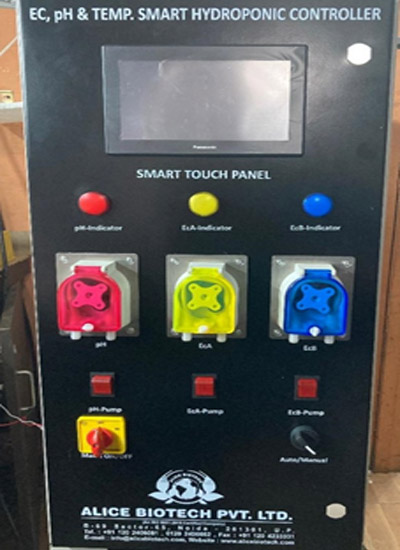

Ec, PH & Temperature Smart Hydroponic Controller

The Alice Biotech Ec, pH & Temperature Smart hydroponic controller main function is to maintain a consistent EC and pH level in the mixing tank at all times.

The system consist of 3 No. of Peristaltic pumps having dosing limit of 0 to 1000 ml/minute and suitable for larger hydroponic systems. The main advantage of Alice Hydroponic controller is that it consist of large 7 inch touch screen, which is very user friendly and have ability to set desired values of pH & Ec levels. Alice Biotech expertise to build the system as per user requirements like if you need more number of Peristaltic pumps etc. than we can do it easily. Installation is very easy and can be done with the help of our technical team.

This Hydroponic controller have a unique expertise to run the system in Auto or Manual mode. Suppose due to some technical issue controller is not working, then you can run the system in Manual mode easily. Means system will run continuously without any interruption. It also consist of separate light indicators for showing the running status of Pumps.
You tube Video link : https://www.youtube.com/watch?v=5NGvgU3WcSQ

  • The controller consist of three main pumps suitable configuration are for:
  • EcA pump for N-P-K + MgSO4, etc.
  • EcB pump for calcium nitrate or CaNO3, etc.
  • pH pumo for pH (down/up)
  • Specifications of pH Sensor:
  • Range - 00.00 to 14.00
  • Type - Flow Through/Tank(optional)
  • Electrode Material - Glass bulb
  • Cable - 1 core shielded 3 meter length
  • Specifications of Ec Sensor:
  • Range - 0.5 to 1999 µS/cm2 (other range available)
  • MOC - SS-316/ABS
  • End connection - W' &%" BSPM
  • Cell constant(K) - 0.01/0.1/1.0
  • Cable - 2 core shielded 3 meter length
  • Sensor holder - 3/4" Tee(MOC : ABS/Norryl)
  • Specifications of Front Touch Panel:
  • Display device - 7 inch, TFT color LCD
  • Power supply - 24 V DC
  • Operating voltage range - 21.6 to 26.4 V DC
  • Power consumption - 6 W or less (250 mA or less)
  • Protective construction - IP65 (in the initial stages), Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)
  • Resolution - 800 (W) × 480 (H) dots
  • Display color - 65,536 colors
  • Backlight - 230 screens approx
  • SD memory card slot - Available
