Size: 200 Sq.mtr to 2000 Sq. mtr.

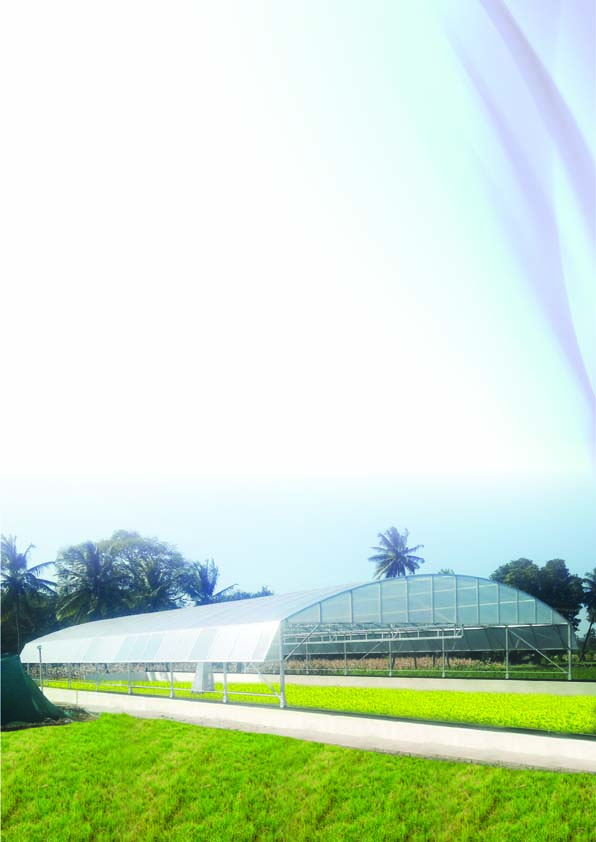

Rainout shelters are designed to protect a certain area of land against receiving precipitations/rain so that an experimentally controlled drought stress can be imposed on that area. Many types of rainout shelters were designed and used, with better or lesser results but above mentioned designed are best to our knowledge.
There are two main designs: (1) static and (2) movable. Within the moveable design there are automatic/motorized and manual versions. The automatic version is signaled to move over the protected plot by a rain sensor and an electric drive system. The manual version is moved either by manually pushing it ("manually pushed") over the protected plot.
It will is moved into the parking space whenever rain is expected to cease completely. Good weather forecasting service is therefore important. If forecasting is unreliable, better have the shelter over the protected plot more time than expected. Therefore, the shelter construction must allow sufficient light inside as well as some ventilation.
The direction of the protected plot and the parking place of the shelter will be designed so that the parked shelter will not shade the plot in the morning or the evening and that the direction of the wind would not allow rain to blow under the shelter. The shelter parking place cannot be used for growing experimental plots. This structure will race on parallel rail & rail of GI iron channel
