Tissue Culture Lab Equipments

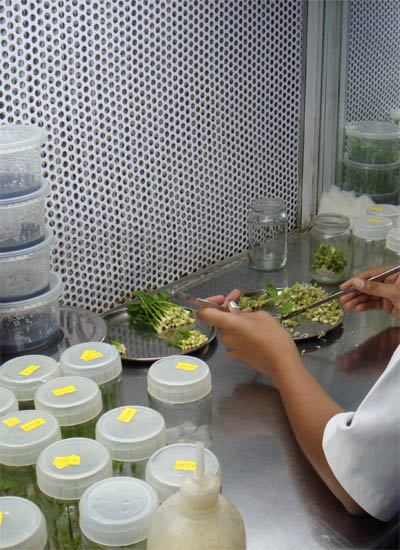

Tissue Culture Lab

Plant Tissue Culture is a best method of plant propagation done in a laboratory. There are many methods of micropropagation. Plant tissue culture involves growing plants in an artificial medium under sterile conditions in a jar, flask or test tube. In theory, this process can go on indefinitely, producing many plants over time. Some plant tissue cultures are started from very small sections of plant tissue. The plants produced this way are exact copies or clones, of one another. While cloning is important for producing multiples (hundreds, thousands, even millions) of an individual, tissue culture offers other ways to propagate plants that are not "clones." Some plant tissue cultures are started from seeds. When seeds are used for tissue culture, each new plant is genetically different from its parent plant.

We setup complete Tissue Culture Lab as per client requirements.

As per standard practice following rooms/equipments will be set up:

DIGITAL TEMPERATURE CONTROLLER
AB-21007

-- Digital Based Controller
-- LED display for SV & PV, Feather touch operation, Platinum sensor probe Pt-100 class A, Set point lock
-- Level lock to ensure that the parameter can be read but cannot be changed
-- Sensor failure indication
-- Selection of unit C/F
-- Display resolution 0.1 degree
-- Accuracy +0.1 C
-- Temperature range from 0 C to 60 C
-- Input - 200-240 VAC, 50 Hz. Single phase
-- Ambient 5C-50C, RH up to 90%.

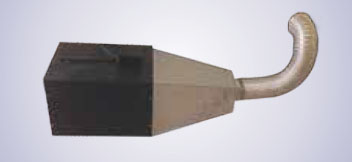

Air Exchange Unit
AB-33003

-- Air exchange unit Fitted with HEPA filter of an efficincy of 99.99% down to 0.3 micron
-- Media of glass fibre
-- Made of pleats back & fro in an anodized aluminum frame
-- Heavy Duty fan
-- Connected wity cyclic timer
-- 0-999 Hrs. / Min / Sec. ON, 0-999Hrs / Min / Sec, OFF, automatic cycling, Accuracy quartz, Input 200 V to 240 VA.C, Phase-Single, 50 Hz, Ambient 4 degree C to 50 degree C, RH upto 90%.

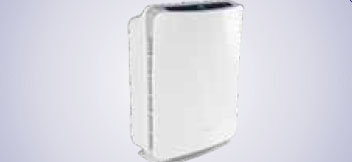

Air Purifier System
AB-3306

-- Aluminum Static Plasma Filter + Hepa + UV Light + Photo Catalyst + Activated Carbon + ions + Odor Sensor + LED Screen with remote + Ozone Operation Optional with complete wiring and installation.
- Covering Area 60 M2
Air Flow Volume 500 M2/hr
Power Rating 50 W
- Noise Level 40 db

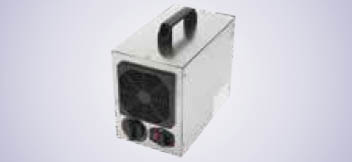

Ozone Generation System
AB-21009

-- Dry ionic disinfection, area 35m3 space, 90 to 100%, 16 PPM, Amp - 2, auto stop
-- Heavy Duty Power drive along with ozone monitor
-- Display Meter analog with the ozone generation unit
-- Auto failure Detection unit incorporated. Input - 110/220 V AC, 50 Hz, Single phase, Ambient 0 degree C to 50 degree C, RH - up to 95%.

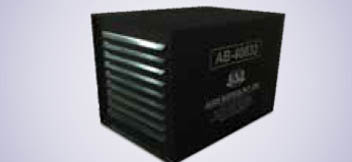

Heating System
AB-40032

-- Heat convector with paralytic technique, Auto thermal cut off device
-- 2 / 2.4 KW heater, variable speed selector switch selective combustive material chosen for minimum utilization for atmospheric oxygen
-- Input 200-240 VAC, 50 HZ, single phase
-- Ambient 5 degree C to 50 Degree C, RH up to 90%.

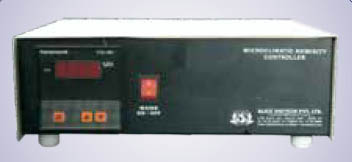

Microclimatic Humidity Controller
AB-22007

-- Real Time microprocessor based -- On/Off control for Humidifying / Dehumidifying, Hysteresis / Differential 1% - 9% -- Delay timer 0-240 sec., Direct / Reverse selectable, Feather touch operation -- Fast response sensor -- Line resistance >10degree, Display accuracy - indicating value, 0.2%, 1 digit.

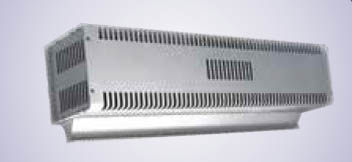

Air Curtain
AB-53005

-- MS powder coated body, Slick in design, with auto ON / Off Switch -- Can save up to 80% of Electricity Max, Air velocity at Nozzle: 21 m/s, Noise Level DB: 50-70 -- No. of Blowers: 3, No of Motors: 2, No of Shafts: 1 Double, Wattage: 350W - 605W Phase Single RPM (Max/Min) - 2700 / 2100 -- Blower Type: ABS, CFM: 825 - 1490, Insect / dust rejection: 75%

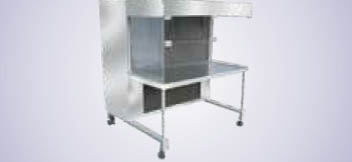

Horizontal Laminar Air Flow
AB-21001

-- Working Area 6' x 2' x 2'
-- Static finish S.S. Table Top
-- Transparent Front Door (6mm)
-- Built in UV Germicidal Light
-- Hepa Filter 99.999% efficiency for particles > 0.3 Pre-Filter - 85% efficiency for particles >0.5 11m
-- Particle Count - Better than US Fed STd 209B class 100
-- Cabinet - High Quality Stainless Steel SS 304
-- Blower - High efficient centrifugal type with life time lubricated bearings
-- Light - Florescent lighting
-- Manometer
-- Noise level - 55 DB

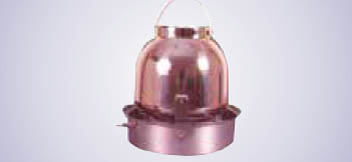

Cold Humidifier
AB-50052

-- Super fine cold water vapours, Super quality HDPE material blade -- SS 304 grade body -- Non corrosive -- Heavy duty 0.25 Hp motor float valve for regulation of water -- 5 Ltr. tank capacity -- Portable type with castor arrangement -- Suitable for small laboratory area -- Direct RO water can be connected -- Input - 110/220 V AC, 50 Hz, Single phase, Ambient to - 0-50 degree C, RH-up to 95%
