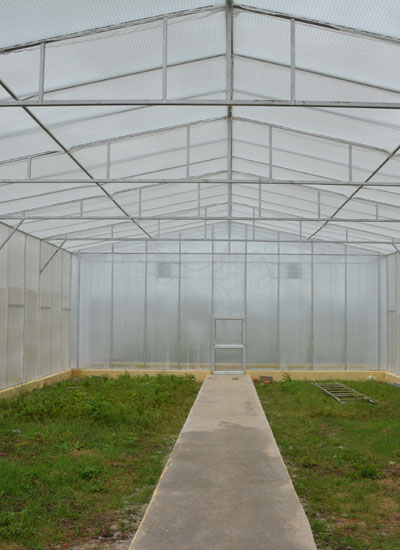

Screen House

Size: 25 Sq.mtr to 4000 Sq. mtr.

The Screen House offer cross ventilation as well as very good growing results and also used for Research Purposes. The structure itself is fabricated using quality modern structural materials like steel, aluminium and nylon/steel mesh.

  • Screen Houses Specifications:
  • Structure: Complete structure will be made of galvanized steel square/tubular pipes.
  • Columns: 60 mm Round /Square , 2.0 mm thick
  • Trusses, purlins and hockey: 48 mm Round /Square, 2.0 mm thick
  • Member for Truss, purlins & other: 42 mm Round /Square, 2.0 mm thick
  • Bressing: 32 mm Round /Square, 2.0 mm thick
  • Entrance room & Door: Two entrance room of size 2m x 2m x 2.5m (L x W x H) made of GI pipe having minimum wall thickness 2.0mm or Aluminum profile need to be provided and covered with UV stabilized Poly carbonate sheet 6mm. Hinge lockable doors of size 1m width & 2 m height made polycarbonate sheets mounted in suitable strong frame.
  • Cladding material: The complete structure will be covered with 40mesh SS 316 L will be used to cover the structure. EPDM rubber gasket will be used to prevent the insect entry
  • Fixing of cladding materials: All ends/ joins of net house to be fixed with two way aluminum profile with suitable locking arrangement such as zigzag high carbon steel with spring action wire of 2-3 mm diameter.
  • Civil Work: Depth of foundation need be kept at 60mm or more depending upon soil type are prevailing wind condition. FI pipes of 48 mm light class conforming to Indian Standards IS: 1161-1998 or equivalent sections will be grouted in cement concrete mixture with 1:2:4 ratios.
  • Drip irrigation System: Drip irrigation system inside greenhouse need to be selected based on crop spacing. The suggested bill of materials must have Stand Filter, Control Valves, Bypass Assembly, Air Release Valve, Non Return Valve, Throttle Valve, Flush Valve, Venturi Injector with manifold, PVC pipes, LDPE plane lateral, Emitting pipe, to be fixed w.r.t design. Water tank and fittings & accessories (applicable only BIS standards for all irrigation components as well as water tank).
  • Footpath: Connecting paver block path at center of each way 1.2m wide and also around the structure inside and outside.
