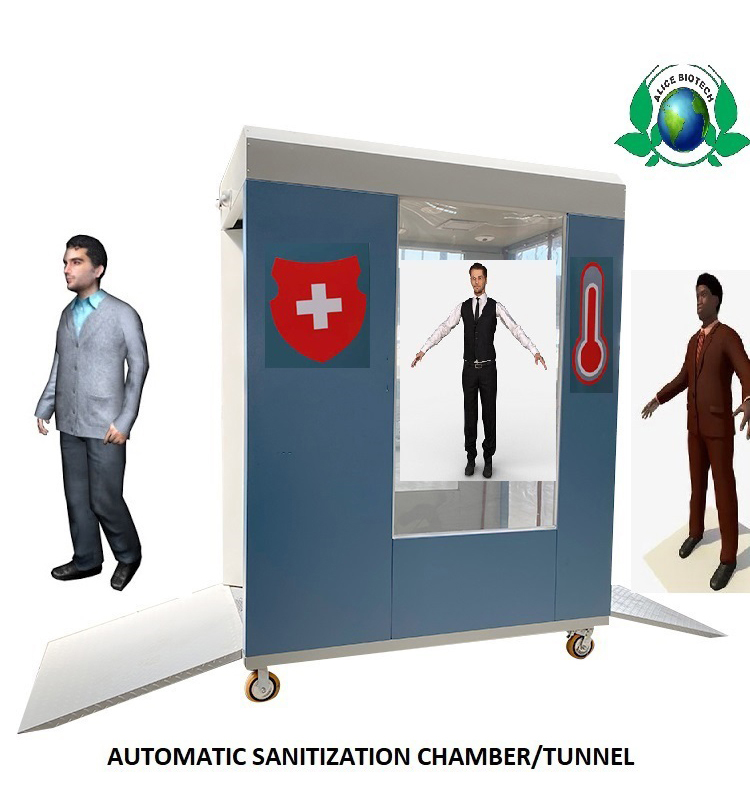

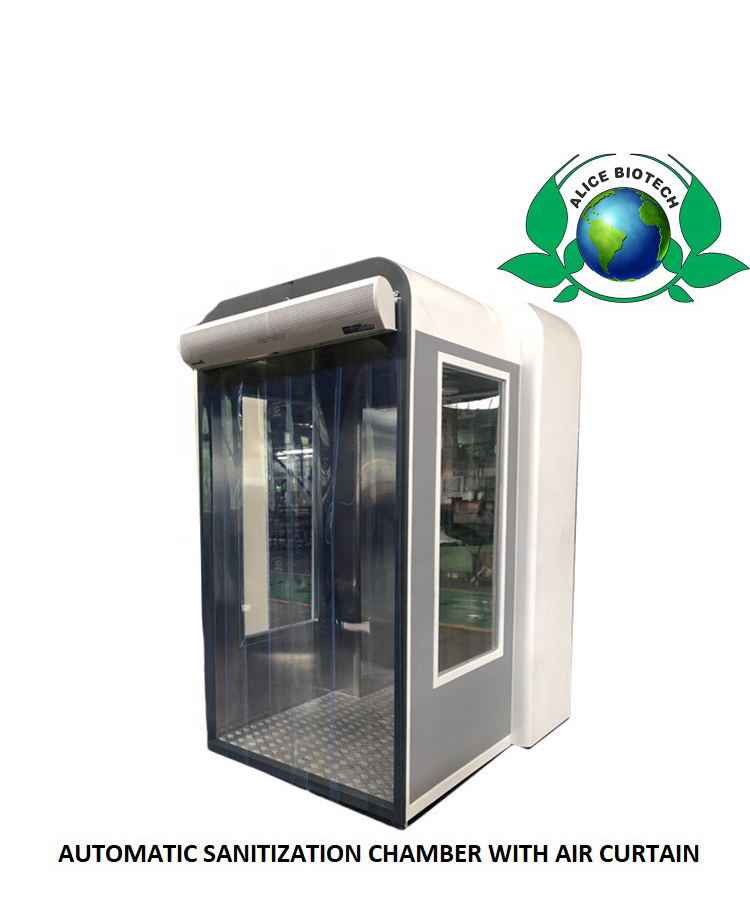

Disinfection Tunnel /Sanitizing Tunnel
Specification
Dimension of the Tunnel/Chamber 10x5x8 ft (LxBxH) / 8x5x8 ft (LxBxH) / customized sizes available on request
Structure:-
GI/MS/Aluminium/Puff Insulated
Walls:-
Polycarbonate sheet /Polyfilm/ Acrylic Sheet/ Puff Insulated
Floor:-
Puff Insulated with Drain Sytem/Perforated Aluminium Sheet /SS Sheet
Number of Misting Nozzles:-
4 Way -3 Nos
Average time per user:-
5 to 7 seconds
Chemical Tank storage capacity 200ltr / 500 ltr
Motion Sensor Based
Pump Rating:-
0.25 HP with capacity of 1.5 litres per minute approx.
Entry / Exit with 2mm Strip PVC curtains is optional
Wheel Arrangement is Optional
Cyclic timer controlled ON/OFF System
